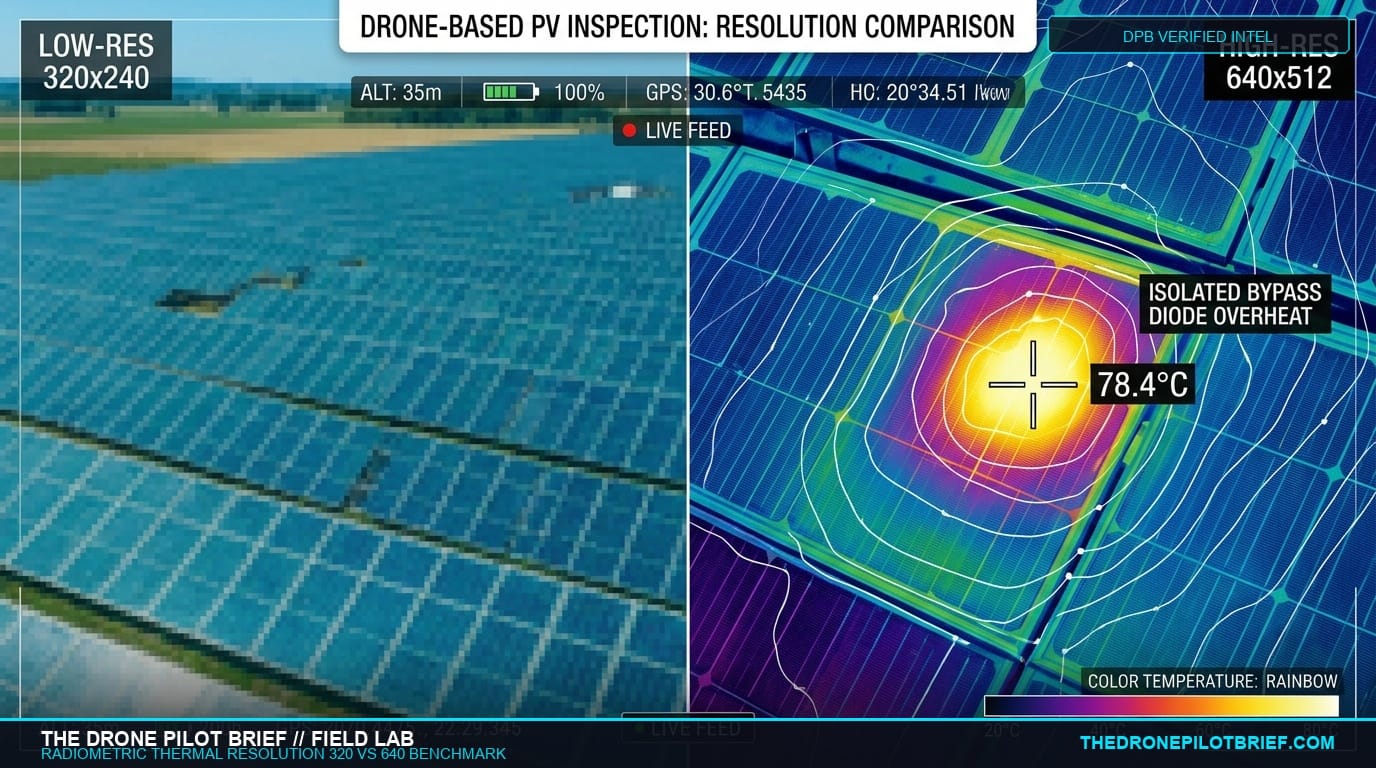

Thermal Resolution in the Field: 320 vs. 640 Radiometric Cores and the Math of Critical Audits

The Brief

In commercial drone thermography�whether scanning utility-scale solar farms, auditing commercial flat roofs for trapped moisture, or inspecting high-voltage substations�payload pricing creates an immediate fork in the road. A dual-sensor thermal drone equipped with an entry-level 320×240 uncooled microbolometer often costs $3,500 to $5,000, while an enterprise aircraft sporting a 640×512 radiometric core routinely commands $8,000 to $14,000.

Sales reps frequently tell prospective buyers that lower resolution simply requires "flying a little lower." In the field, however, physics, flight battery limits, and international inspection standards (such as IEC 62446-3 for photovoltaic arrays) tell an unforgiving story.

This operational guide breaks down the optical math behind Instantaneous Field of View (IFOV) and Measurement Spot Size Ratio (SSR). Understanding this formula is the difference between delivering certified, actionable radiometric reports and having your deliverables thrown out by insurance adjusters and warranty engineers.

Imagine using an optical thermometer to check a patient�s temperature from across the room, but the sensor�s lens is so wide that it averages the patient�s forehead with the cold air conditioning unit behind them.

The patient has a 104�F fever. Your thermometer reads 98.6�F.

That is exactly what happens when you fly an uncalibrated 320-resolution thermal drone across an industrial asset. You aren�t reading the hotspot; you are reading a blurred average of the hotspot and the cool aluminum framing next to it.

The Optics: Calculating Maximum Flight Ceiling

Consider a standard utility solar inspection. A defective bypass diode, junction box fault, or micro-crack hotspot on a photovoltaic module typically occupies an area of approximately 30 mm × 30 mm (1.2 × 1.2 inches).

Using a standard 13mm thermal focal length:

• 640×512 Radiometric Core (12μm pixel pitch): Produces an IFOV of ~0.92 mrad. To project 3×3 pixels across a 30mm target, your maximum allowable Above Ground Level (AGL) altitude is 36 feet (11 meters) for certified temperature measurement. For detection (1-pixel classification), you can fly up to 110 feet (33 meters).
• 320×240 Core (12μm pixel pitch): Produces an IFOV of ~1.85 mrad. To project 3×3 pixels across that same 30mm hotspot, your maximum flight ceiling drops to 18 feet (5.5 meters).

The Real-World Penalty: Flight Time and Collision Risk

Flying a 20-megawatt solar farm or a multi-acre commercial rooftop at 18 feet AGL is practically untenable. At 18 feet, your aircraft is operating below light poles, fence lines, and inverter structures, creating severe obstacle collision risks.

More importantly, the narrower field of view forces you to fly four times as many flight grid passes, multiplying battery cycles, field labor, and pilot exhaustion by 400%.

When an operator flying a 320 sensor cheats and flies at 80 feet to save time, the 30mm hotspot covers only a fraction of a single pixel. The sensor averages the 85°C diode hotspot with the surrounding 35°C glass. The report reads an innocuous 44°C�masking a critical electrical fire hazard and invalidating the solar warranty claim.

Flight-Ready Breakdown

Primary Sources & References

• IEC 62446-3: Photovoltaic Systems - Outdoor Infrared Thermography Standards
• ASTM C1060: Standard Practice for Thermographic Inspection of Insulation Installations
• FLIR Systems: Spot Size Ratio (SSR) and Measurement IFOV Technical Note
